Tech Craze

Ap 661

Ap 661

R 5,000.00 ZAR
R 5,000.00 ZAR
Sale Sold out
Shipping calculated at checkout.
Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Installation Type Wall, Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod),Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm)
Optimal Signal Distance (m) 30
Max Number of Access Users 1536
Recommended Number of Access Users 300
Device Rate 6.575 Gbps

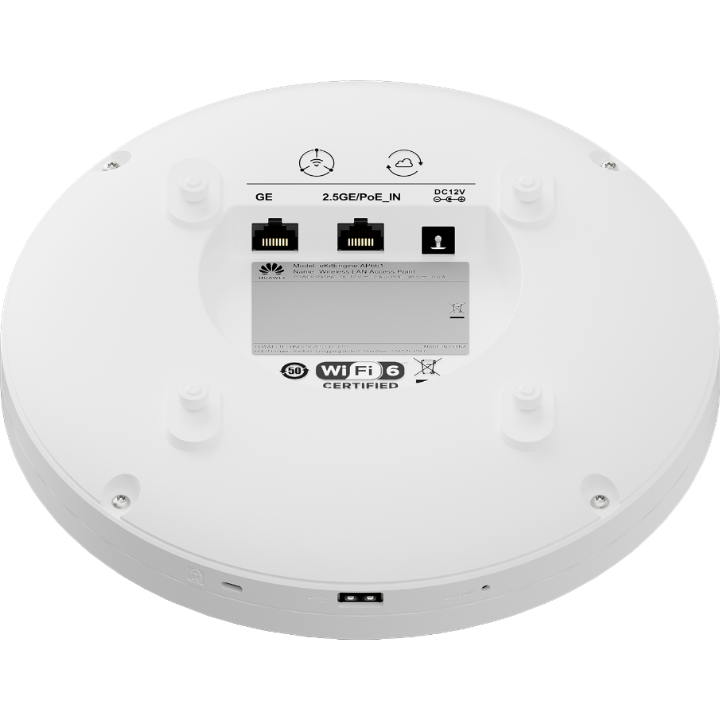

Maximum number of physical ports on the entire device 2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Radio number 3
Maximum channel bandwidth [MHz] Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz-H): 80 MHz Radio 2 (5 GHz-L): 160 MHz
Maximum transmit power 2.4 GHz: 22 dBm/chain 25 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 5 GHz (4x4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm
MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz-H): 2x2 (high frequency band: 5490–5850 MHz) Radio 2 (5 GHz-L): 4x4 (low frequency band: 5150–5330MHz)
Maximum power consumption [W] 21.2 (excluding USB), 802.3at/af power supply
Input voltage range [V] DC: 12 V ± 10% PoE: 802.3at/af
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)
Weight without packaging [kg(lb)] 1.08 kg (2.38 lb)
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Radio interface Built-in smart antennas
Antenna gain 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi
Operating frequency band 2.4GHz,5GHz
